TH-1540 Optimized for harsh working conditions such as strongvibration and high dust in mining, metallurgy and port environments, itenables long-term stable operation, adapts to the needs of containerstacking alignment, anti-bowling collision prevention and truck guid-ance, and serves as a core perception device for demanding industrialscenarios.
TH-1540 is a high-performance industrial-grade LiDAR with core advan-tages of ultra-high precision and extreme stability, specially designedfor positioning and measurement scenarios with stringent requirementsfor accuracy and stability. Boasting an ultra-high repeatability of ±50mm, it can stably capture low-reflectivity targets with 10% reflectivity at 40 meters for high data reliability; equipped with a 288KHz high emis-sion frequency and 100Hz scanning frequency, it balances efficiencyand precision. Optimized for harsh working conditions such as strongvibration and high dust in mining, metallurgy and port environments, itenables long-term stable operation, adapts to the needs of containerstacking alignment, anti-bowling collision prevention and truck guid-ance, and serves as a core perception device for demanding industrialscenarios.
Transmission frequency225000Hz/288000Hz
Scanning frequency25Hz，50Hz，100Hz
Measure distance40m@10%，90m@90%
Scan angle270°
Light resistance grade80000lx
Angular resolution0.03125°，0.04°，0.0625°, 0.08°, 0.125°

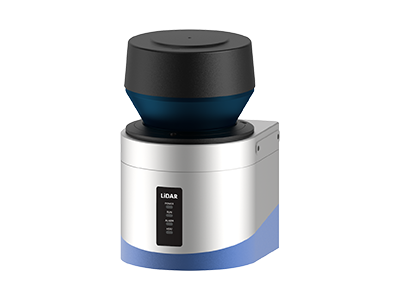

Product Model
TH-1540
Dimensions (L x W x H)
139×129×217mm
Weight
<2.5kg
Laser class
1,eye-safe (IEC 60825-1)
Laser source
905nm
Emission frequency
225KHz/288KHz
Scanning range
40m@10%、90m@90%
Scanning frequency
25/50/100Hz
Aperture angle
270°
Angular resolution
0.03125°，0.04°，0.0625°, 0.08°, 0.125°
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.
