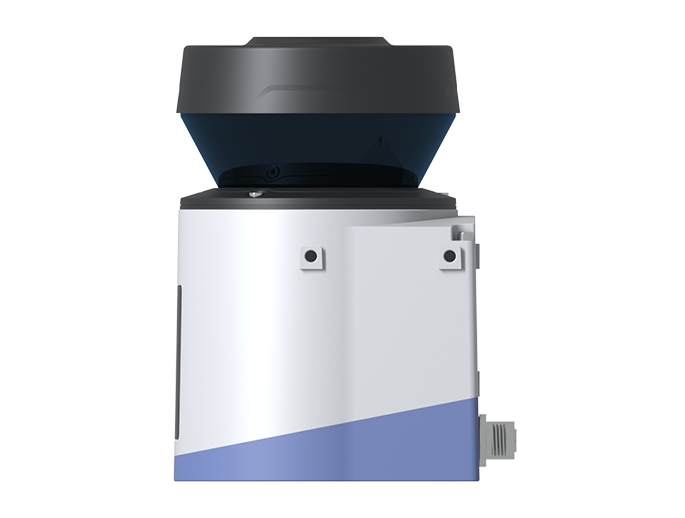

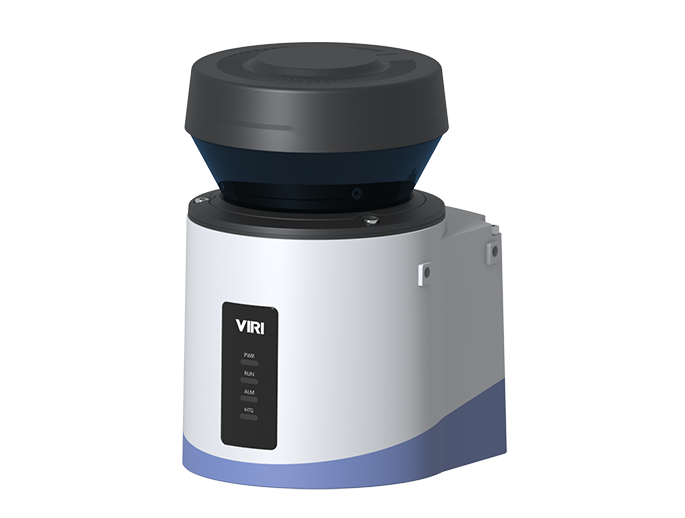

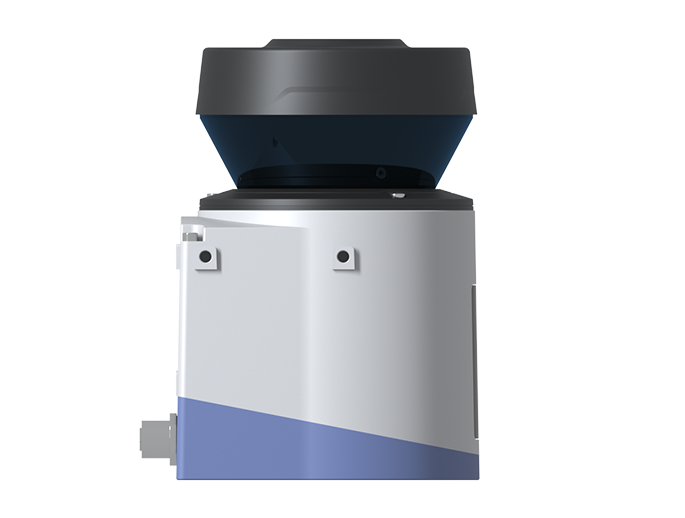

The TH-1230CM is suitable for measuring the length, width and height of vehicle contours
and provides basic data for applications requiring vehicle size.

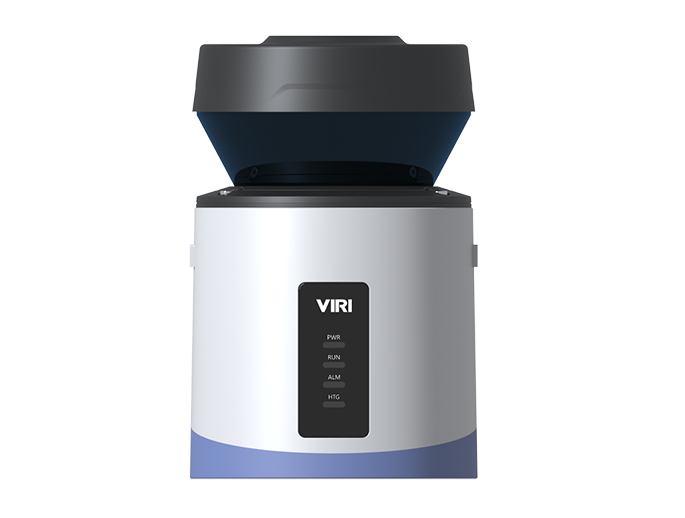

The TH 12 series is a measurement single-line LiDAR supporting indoor and outdoor applications. Compared with the GL-11 series, this product has been greatly optimized and adjusted in appearance and structure. The operating status LCD display is more intuitive, the size and structure are more versatile, and the overall cost performance is higher. For a target with a reflectivity of 10%, the effective measurement distance reaches 30 meters. It adopts industrial-grade protection design, which can meet the strict reliability and high-performance requirements of ports/terminals, highways, railways, power stations and other occasions.
Emission frequency72000Hz
Scanning frequency25Hz，50Hz
Scanning range80m@90%，30m@10%
Scanning angle270°
Light resistance grade80000lx
Angular resolution0.125°，0.25°
Product Model
TH-1230CM
Dimensions (L x W x H)

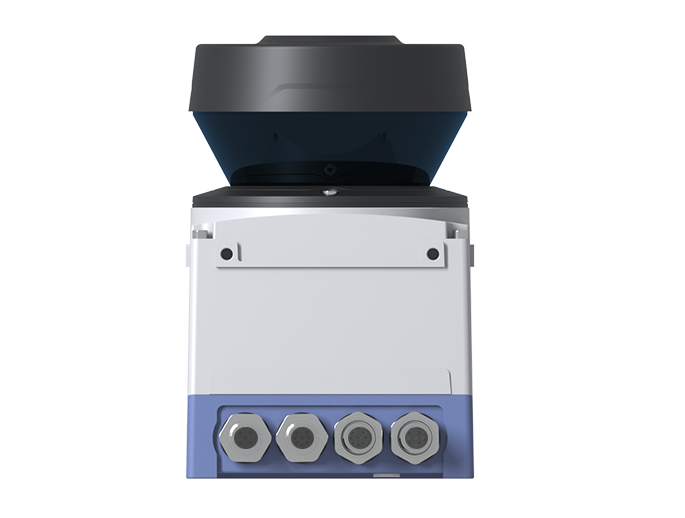

Rear Interface:130×102×157mm;Bottom Interface:108× 102×180mm
Weight
<1.5kg
Laser class
1,eye-safe (IEC 60825-1)
Laser source
905nm
Emission frequency
72KHz
Scanning range
80m@90%、30m@10%
Scanning frequency
25/50Hz
Aperture angle
270°
Angular resolution
0.125/0.25°
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.
Road tunnel entrance
Urban three-dimensional intersection bridge
Highway entrance toll detection
