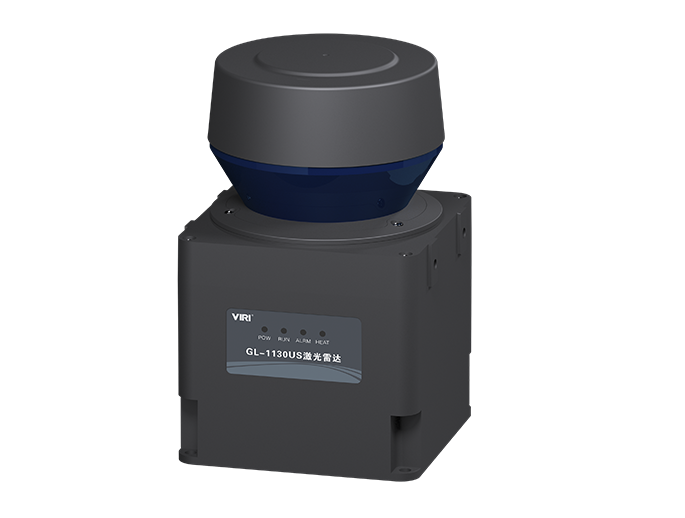

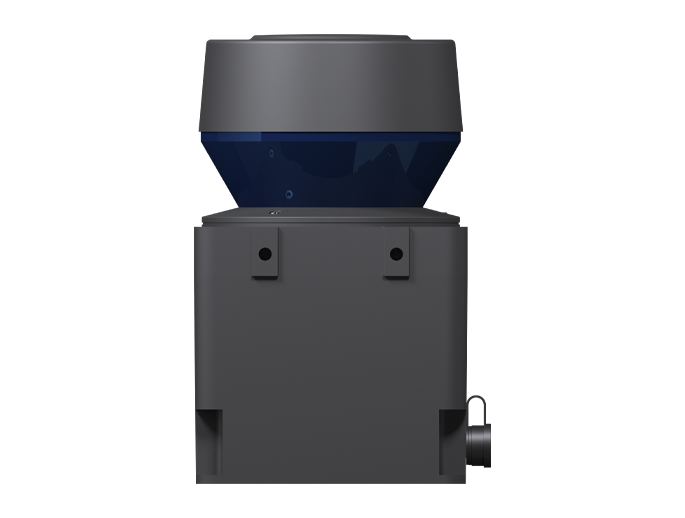

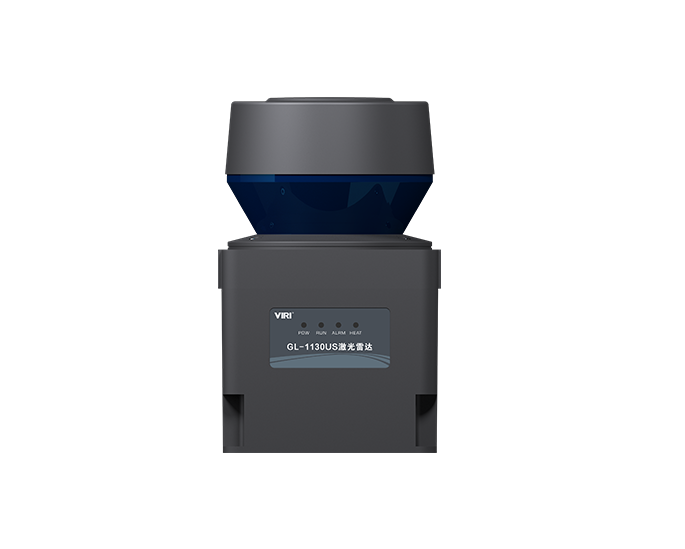

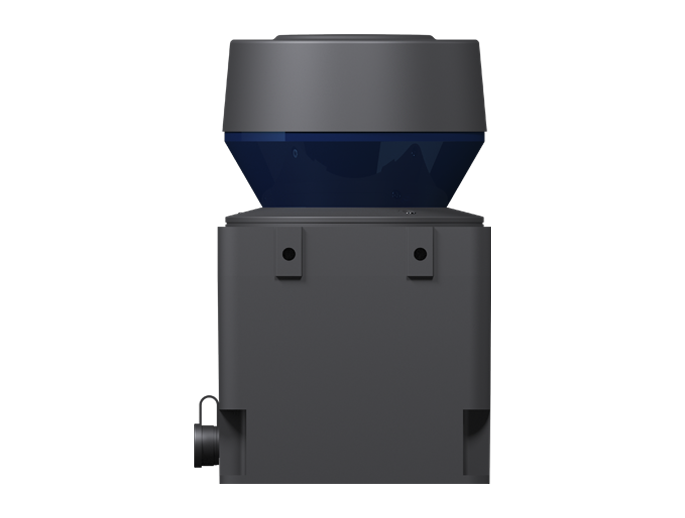

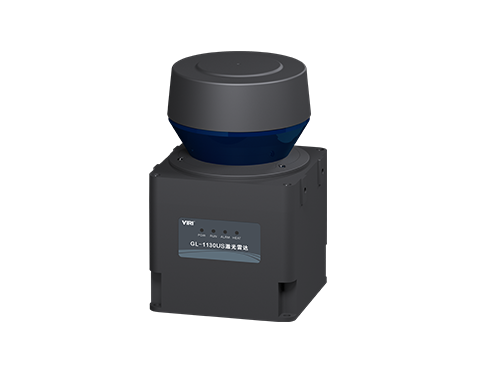

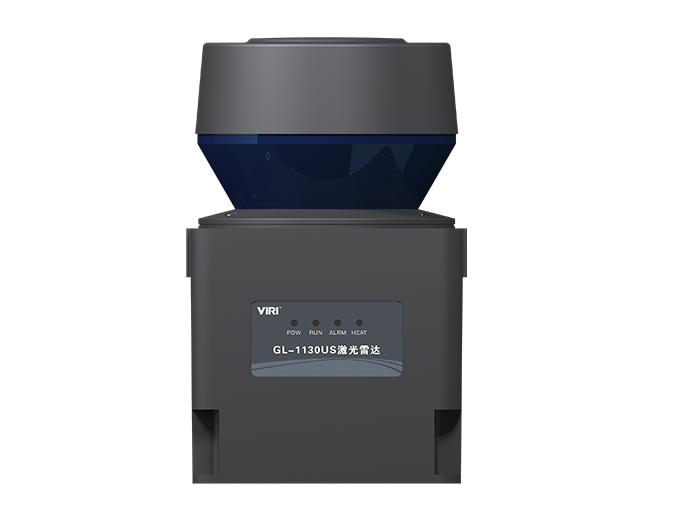

The TH-1130US is suitable for the recognition of road vehicles due to its MAX200Hz scanning frequency,
providing basic data for traffic flow surveys.
The TH-11 Series is a surveyed single-line LiDAR that supports both indoor and outdoor applications. Its excellent measurement capabilities, it can effectively measure distances up to 100 meters to targets with a reflectivity of 10%. The maximum scanning angle range is 270°, the scanning frequency is Max200Hz, and the angular resolution can reach Min0.125°. It adopts industrial-grade protection design which is suitable for scenarios with strict reliability requirements and high performance requirements such as highways, railways, electric power, ports/terminals and so on.
Emission frequency144000/288000Hz
Scanning frequency100Hz，200Hz
Scanning range30m@10%，65m@90%
Scanning angle270°
Light resistance grade80000lx
Angular resolution0.125°，0.25°，0.5°
Product Model
TH-1130US
Dimensions
(L x W x H)

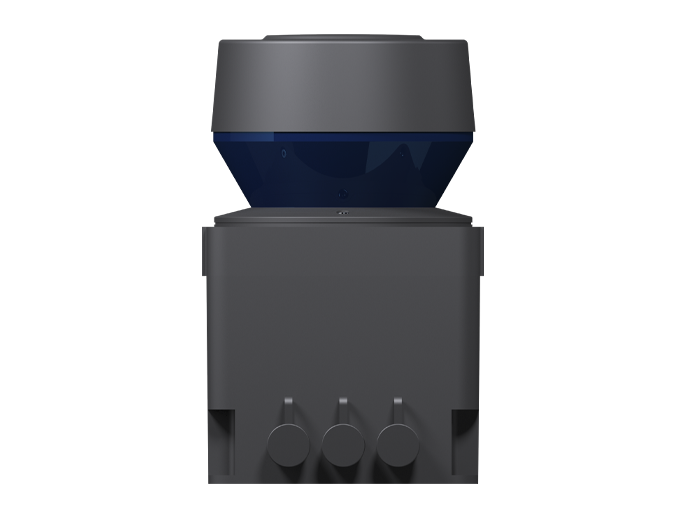

Rear Interface:136×129×205.5mm; Bottom Interface:125×129×217mm
Weight
<2kg
Laser class
1,eye-safe (IEC 60825-1)
Laser source
905nm
Emission frequency
144K/288KHz
Operating range
65m@90%、30m@10%
Scanning frequency
100/200Hz
Aperture angle
270°
Angular resolution
0.125/0.25/0.5°
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.
Road tunnel entrance
Urban three-dimensional intersection bridge
Highway entrance toll detection
