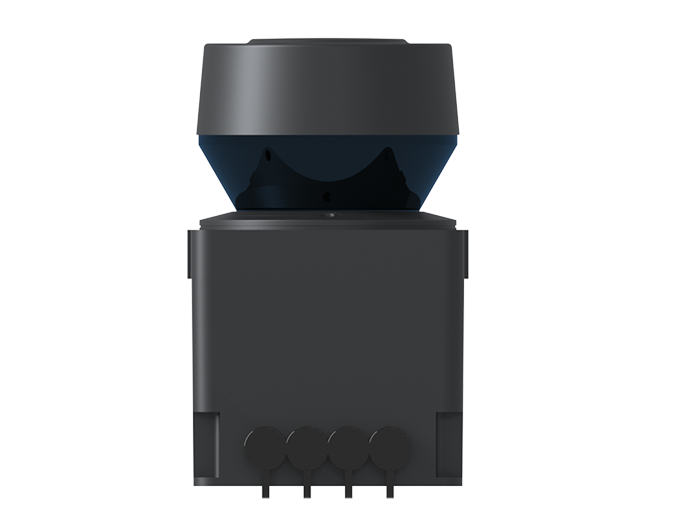

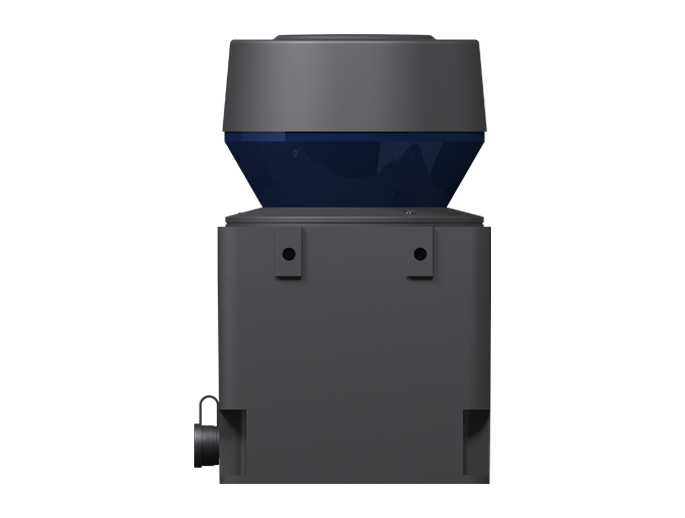

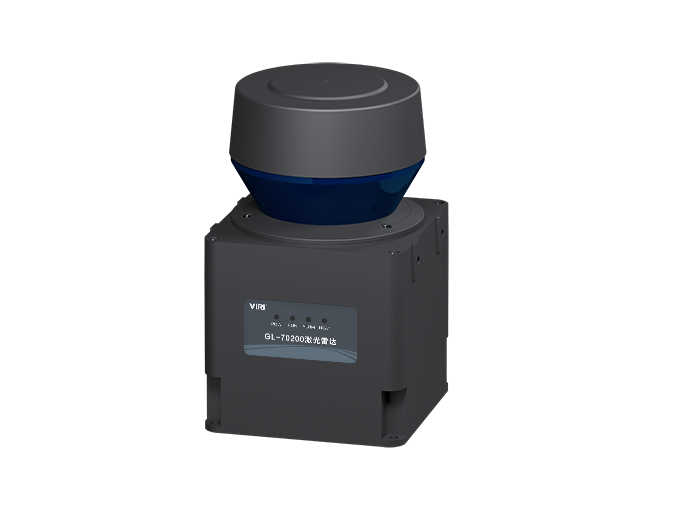

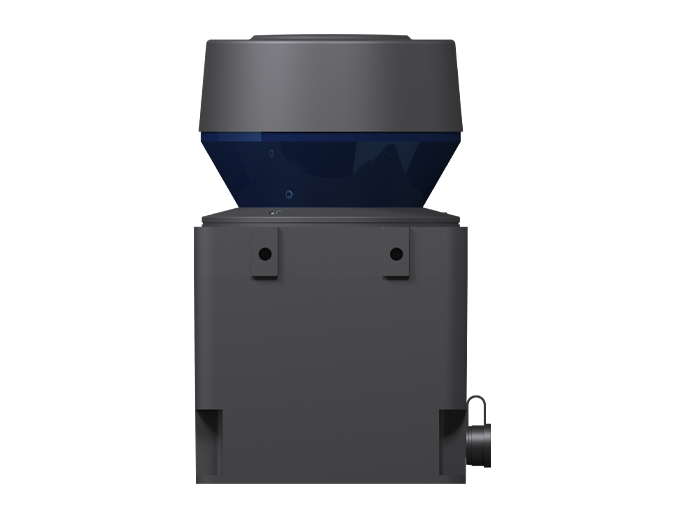

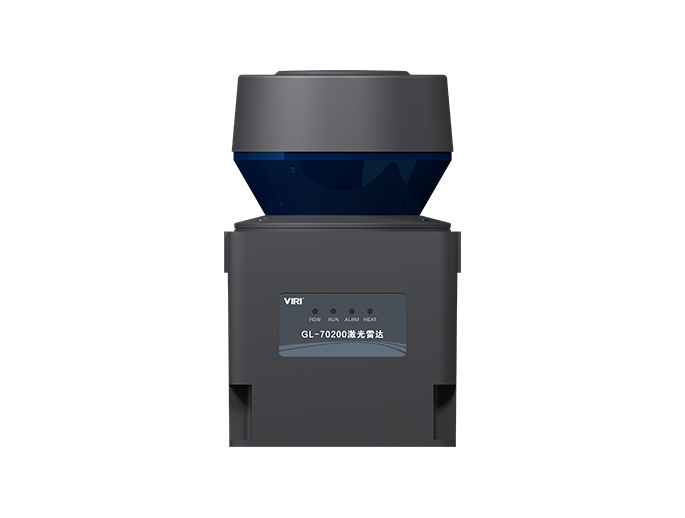

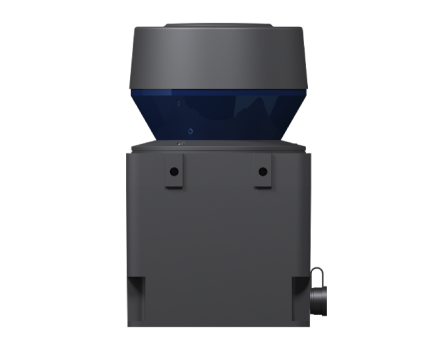

The TH-70200, laser beam divergence ≤2mrad, which enhances its target recognition capabilities.
Together with our gimble unit, it realizes the application of inventory counting for bulk materials in large-scale material yards.
The TH-70 series is a single-line LiDAR for measurement, supporting indoor and outdoor applications. With its excellent measurement capabilities, it can effectively measure targets with a reflectivity of 10% within a range of 200 meters. The maximum scanning angle range is 270°, the scanning frequency is Max100Hz, and the angular resolution is 0.083°. It adopts an industrial-grade protection design, which can meet the strict requirements for reliability and high performance in applications such as positioning in the mining and metallurgical industry, automatic stockpile inventory, and three-dimensional point cloud.
Emission frequency108000Hz
Scanning frequency12.5Hz，25Hz，50Hz，100Hz
Scanning range100m@2%、200m@10%
Scanning angle270°
Light resistance grade80000lx
Angular resolution0.041/0.083/0.166/0.333°
Product Model
TH-70200
Dimensions (L x W x H)
Rear Interface:139.5×129×205.5mm;Bottom Interface:125×129×220mm
Weight
<2.5kg
Laser class
905nm,1,eye-safe (IEC 60825-1)
Laser source
108KHz
Measuring range
5-200m
Scanning range
100m@2%、200m@10%
Scanning frequency
12.5/25/50/100Hz
Aperture angle
270°
Angular resolution
0.041/0.083/0.166/0.333°
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.
Bulk material volume measurement in the silo
Volume Measurement of Material Stockpiles in Silos
Intelligent Port Bulk Material Management
