The TH-5310 identifies vehicle models by recognizing vehicle axles, which is part of the Automatic Vehicle Classification (AVC) system,
providing a data foundation for Manual Toll Collection (MTC) systems.

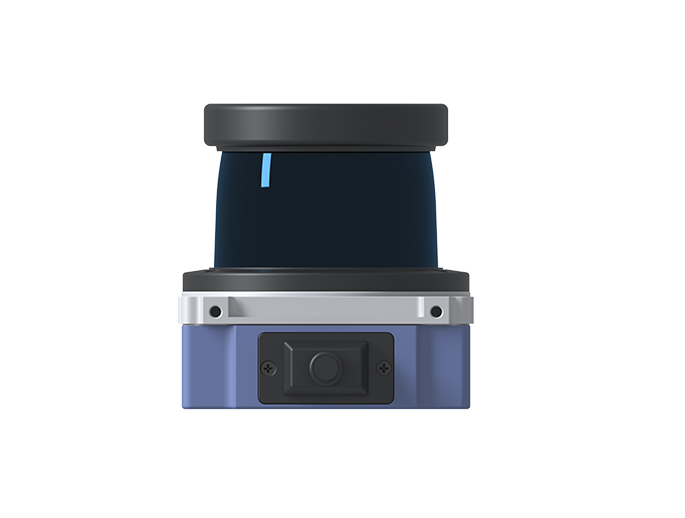

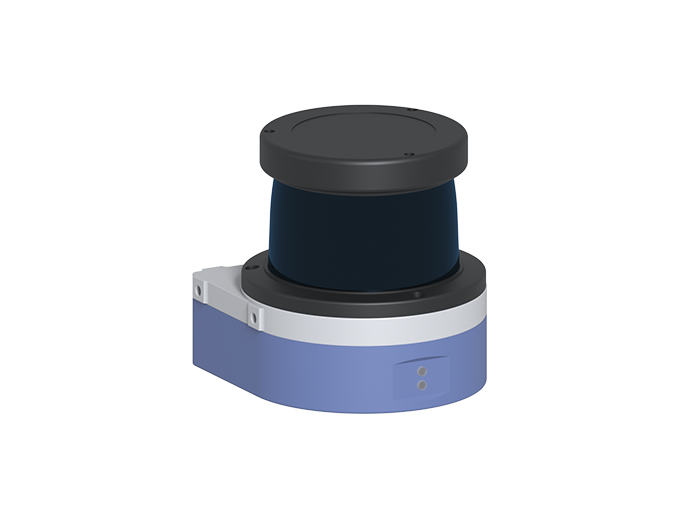

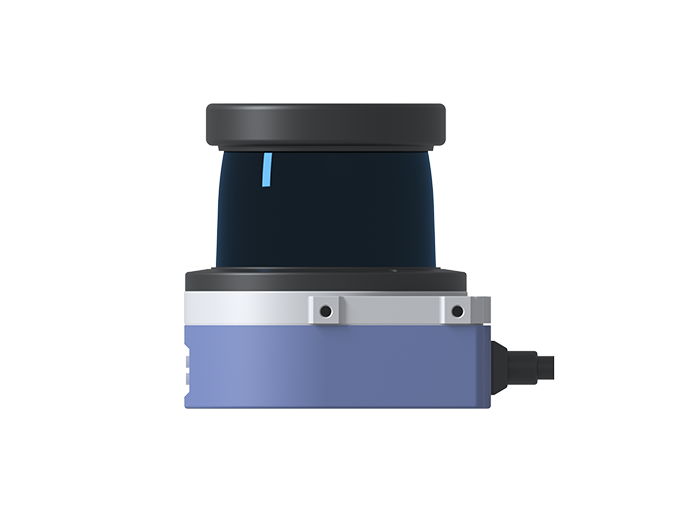

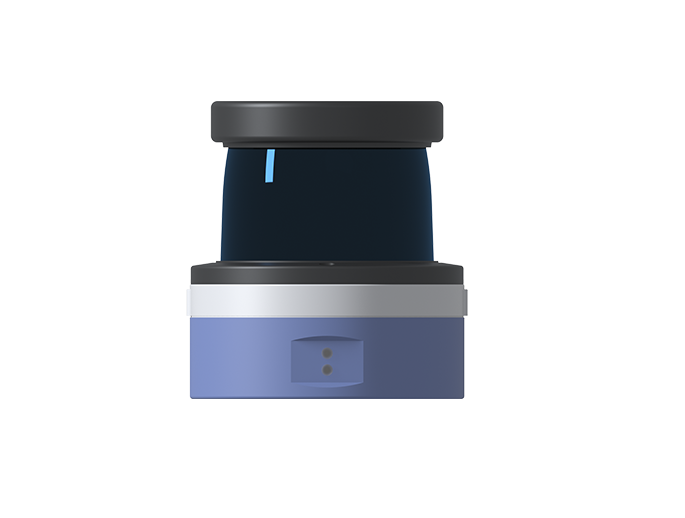

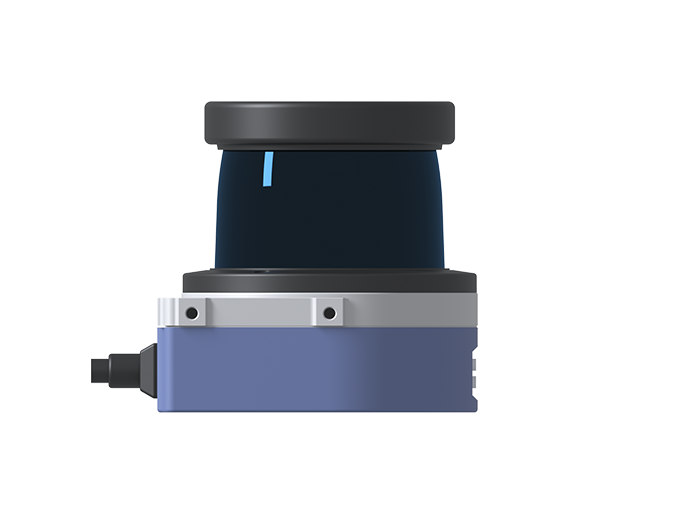

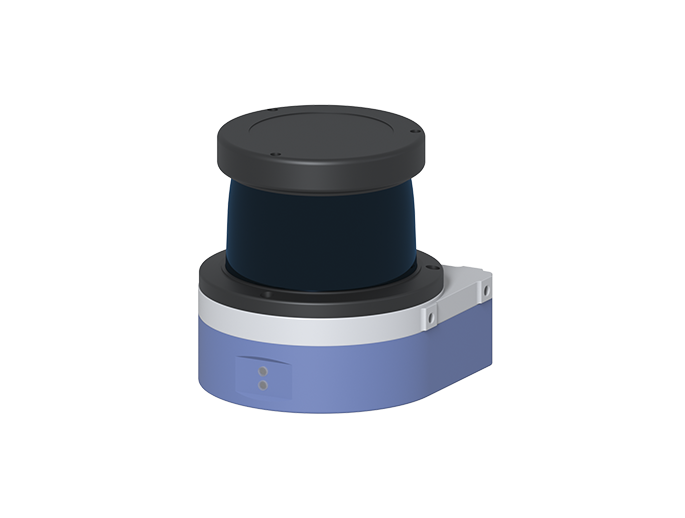

The TH-5310 is a measuring single-line LiDAR, supporting indoor and outdoor applications. It has a maximum scanning angle range of 300°, the highest scanning frequency can reach 50Hz, and the minimum angular resolution is 0.075°. It adopts industrial-grade protective design, which is suitable for vehicle identification in complex road conditions and applications with strict requirements on reliability.
Emission frequency72000Hz
Scanning frequency15Hz，25Hz，50Hz
Scanning range10m@10%
Scanning angle300°
Light resistance grade80000lx
Angular resolution0.075°，0.125°，0.25°
Product Model
TH-5310
Dimensions (L x W x H)
Rear Interface:82.5×72×90mm
Weight
<0.5kg
Laser class
905nm,1,eye-safe (IEC 60825-1)
Laser source
72KHz
Measure range
10m
Scanning range
10m@10%
Scanning frequency
15/25/50Hz
Aperture angle
300°
Angular resolution
0.075/0.125/0.25°
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.
Road tunnel entrance

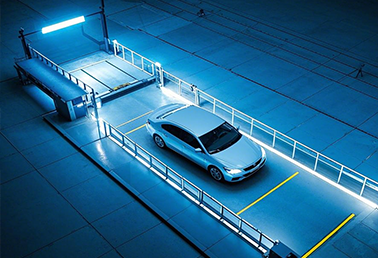

Highway entrance toll detection
Wheel axle recognition vehicle model
