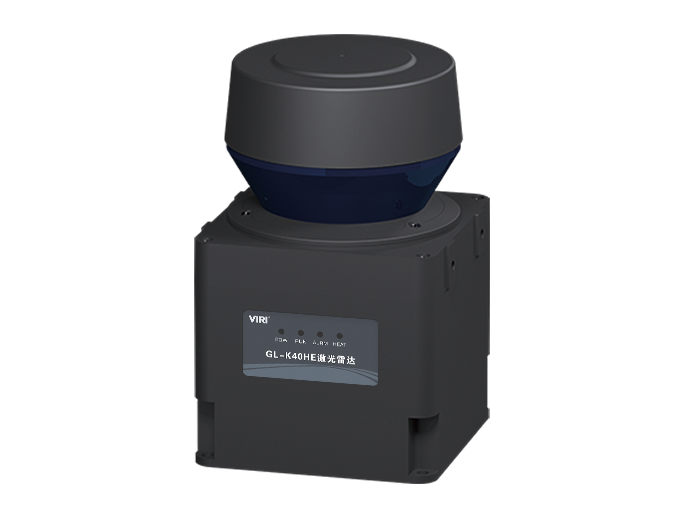

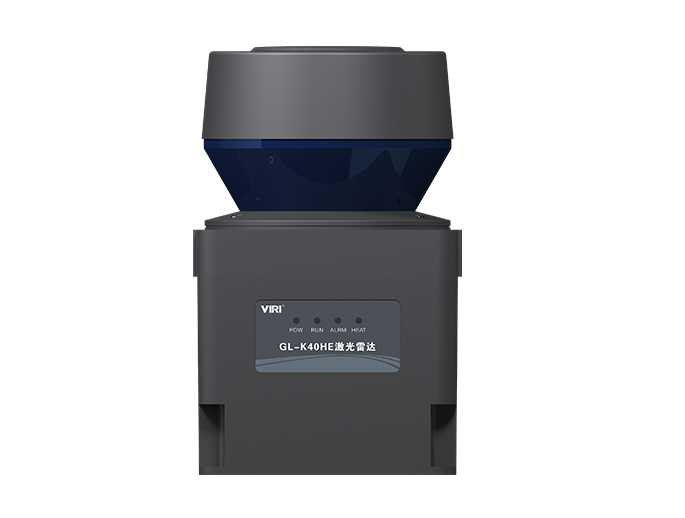

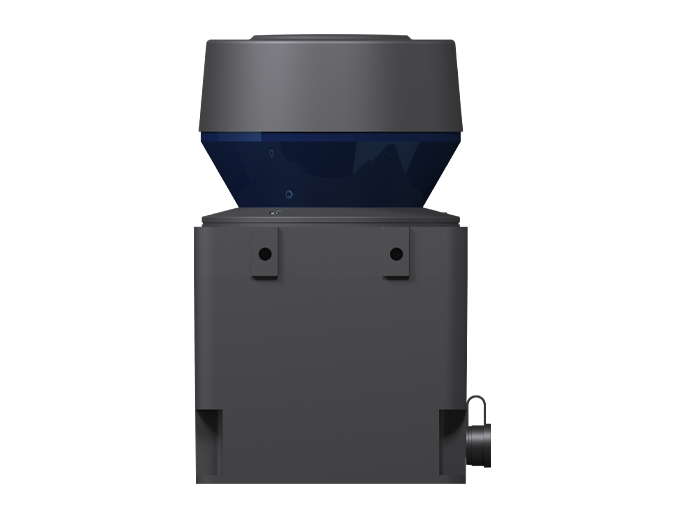

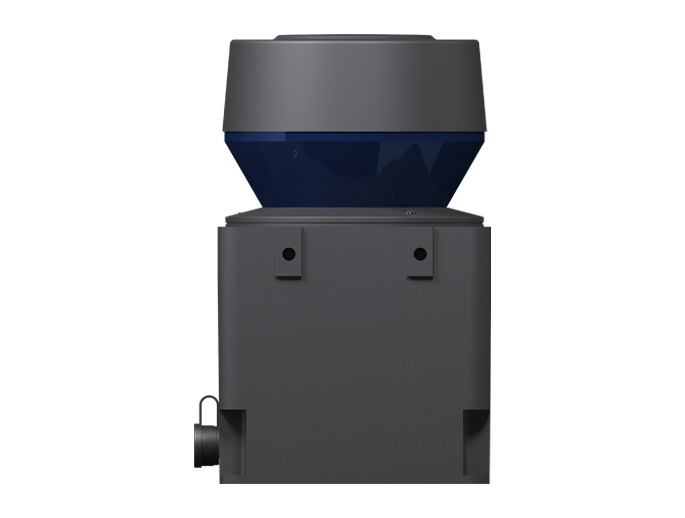

The TH-K40HE is suitable for salty fog environments,
especially for collision prevention and warning on quay cranes and rail cranes' booms in ports.
The TH-K series is a measuring single-line LiDAR, supporting both indoor and outdoor applications. It has strong measuring capabilities, with an effective measuring distance of up to 100 meters for targets with a reflectivity of 10%. It has a higher scanning frequency of up to Max100Hz, and a smaller angular resolution of Min0.0625°. It adopts industrial-grade protective design, which can meet the strict reliability and high performance requirements of applications in the mining and metallurgical industries.
Emission frequency72000Hz
Scanning frequency12.5Hz、25Hz、50Hz、100Hz
Scanning range40m@10% ,90m@90%
Scanning angle270°
Light resistance grade80000lx
Angular resolution0.0625°、0.125°、0.25°、0.5°
Product Model
TH-K40HE
Dimensions
(L x W x H)

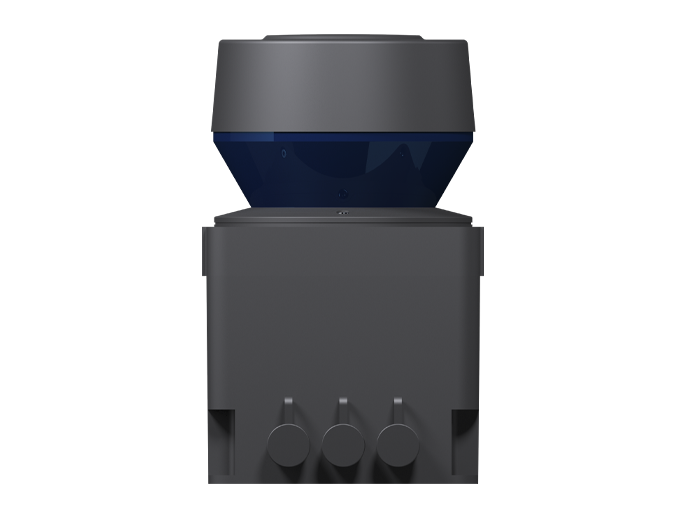

Rear Interface:136×129×205.5mm; Bottom Interface:125×129×217mm
Weight
<2kg
Laser class
1,eye-safe (IEC 60825-1)
Laser source
905nm
Emission frequency
72KHz
Scanning range
90m@90%、40m@10%
Scanning frequency
12.5/25/50/100Hz
Aperture angle
270°
Angular resolution
0.0625/0.125/0.25/0.5°
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.
