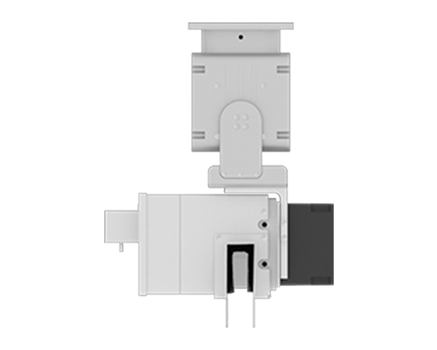

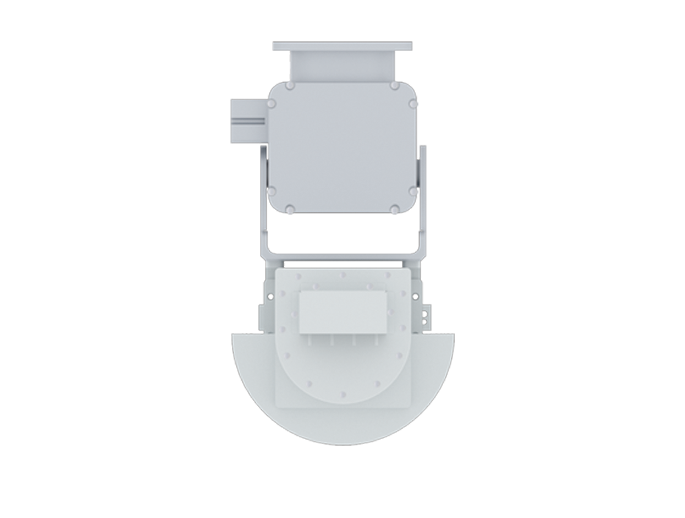

The GLA-T70200/WM 3D LiDAR scanner equipped with our electric dust cover and 180° swing angle,
, scans the stockpile in the bin and outputs volume data in real time.
The GLA-T/WM series of 3D swing table LiDAR scanner equipped with electric dust cover, measuring product developed by our company for the application of bulk materials with relatively fixed position of the measured target. It adopts the integrated lifting design of LiDAR and swing table. It scans the lower material pile in real time to form 3D point cloud data. After combining multiple 3D swing table LiDAR scanners to splice the 3D point cloud data, the output results such as stockpile volume and height are obtained, which have the characteristics of flexible deployment and high cost performance.
Swing speed0.1°~ 15°/S(Configurable)
Scanning frequency25Hz，50Hz，100Hz
Scanning range5-100m@2%,5-200m@10%
Scanning angle180°
Positioning accuracy±0.1°
Angular resolution0.083°，0.166°，0.333°
Product Model
GLA-T70200/WM
Laser source
1550nm
Emission frequency
108KHz
Scanning angle
180°
Scanning frequency
25Hz/50Hz/100Hz
Angular resolution
0.083°/0.166°/0.333°
Scanning range
5-100m@2%;5-200m@10%
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.
