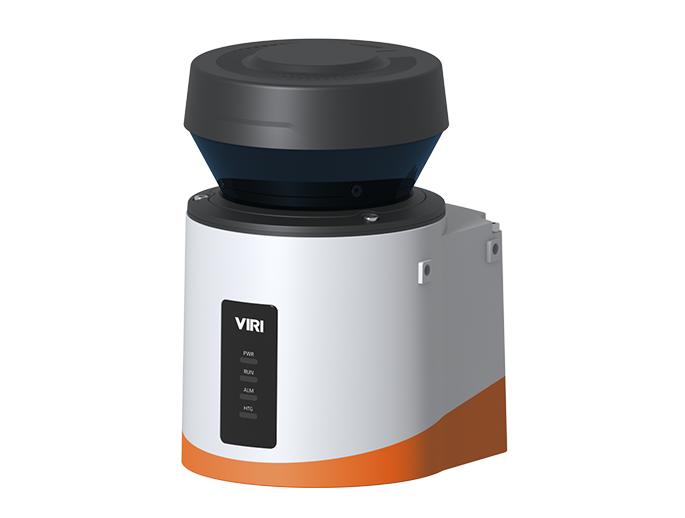

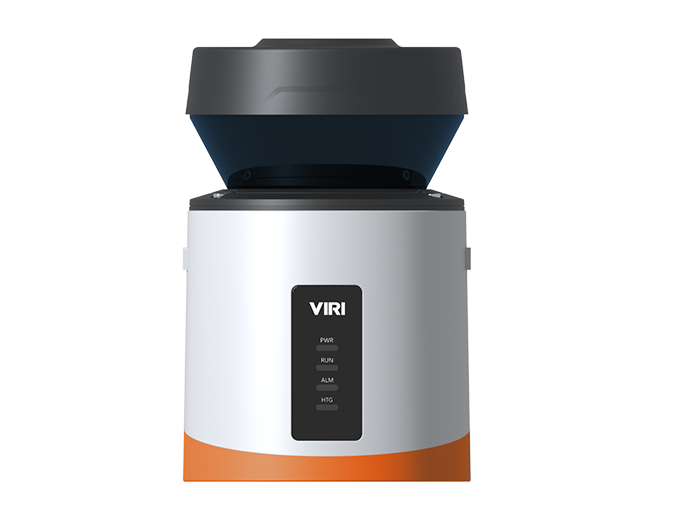

The TH-K30HS lidar is a measuring single-line lidar suitable for both indoor and outdoor applications. This lidar features an industrial-grade protective design, meeting the requirements of various intelligent transportation vehicle detection scenarios, as well as the stringent reliability and high-performance demands of the mining and metallurgical industries. The GL-K30HS boasts a maximum scanning frequency of 100Hz and a minimum angular resolution of 0.03125° (at 25Hz). In addition to its high performance, it utilizes a special circuit design and multiple echo technology, enabling it to operate reliably in harsh environments such as rain, snow, dust, and fog.
The TH-K30HS lidar is a measuring single-line lidar suitable for both indoor and outdoor applications. This lidar features an industrial-grade protective design, meeting the requirements of various intelligent transportation vehicle detection scenarios, as well as the stringent reliability and high-performance demands of the mining and metallurgical industries. The GL-K30HS boasts a maximum scanning frequency of 100Hz and a minimum angular resolution of 0.0625° (at 25Hz). In addition to its high performance, it utilizes a special circuit design and multiple echo technology, enabling it to operate reliably in harsh environments such as rain, snow, dust, and fog.
Emission frequency144000Hz/288000Hz
Scanning frequency25Hz，50Hz，100Hz
Scanning range30m@10% ,80m@90%
Scanning angle270°
Light resistance grade80000lx
Angular resolution0.03125°、0.0625°、0.125°、0.25°
Product Model
TH-K30HS
Dimensions
(L x W x H)
Rear Interface:130×102×157mm; Bottom Interface:108×102×180mm
Weight
<1.5kg
Laser class
1,eye-safe (IEC 60825-1)
Laser source
905nm
Emission frequency
144KHz/288KHz
Scanningg range
30m@10% ,80m@90%
Scanning frequency
25Hz，50Hz，100Hz
Aperture angle
270°
Angular resolution
0.03125°、0.0625°、0.125°、0.25°
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.
