It can achieve personnel intrusion detection, perimeter alarm, linkage of video cameras to track the radar point cloud trajectory of the target, and other functions within a 180-degree radius and a 60-meter sector-shaped defense area.

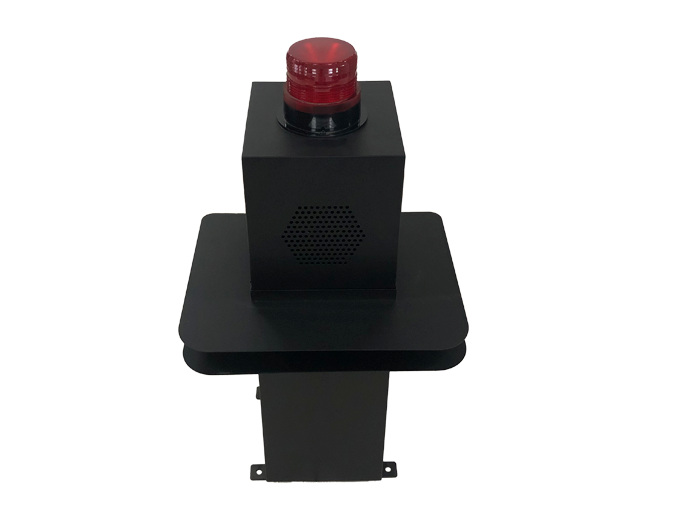

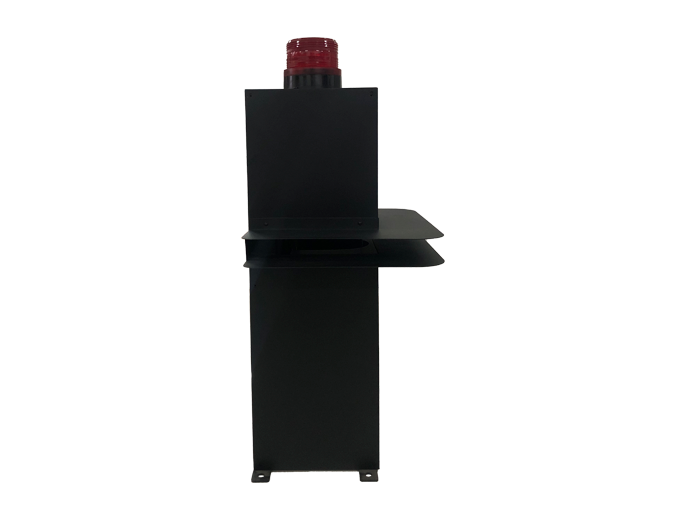

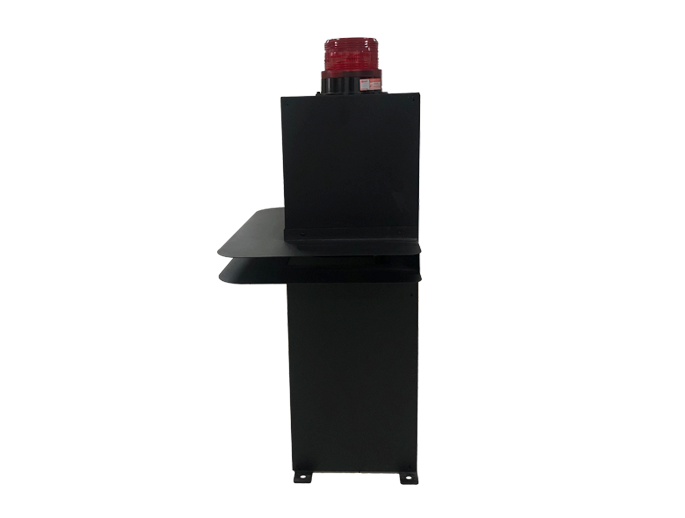

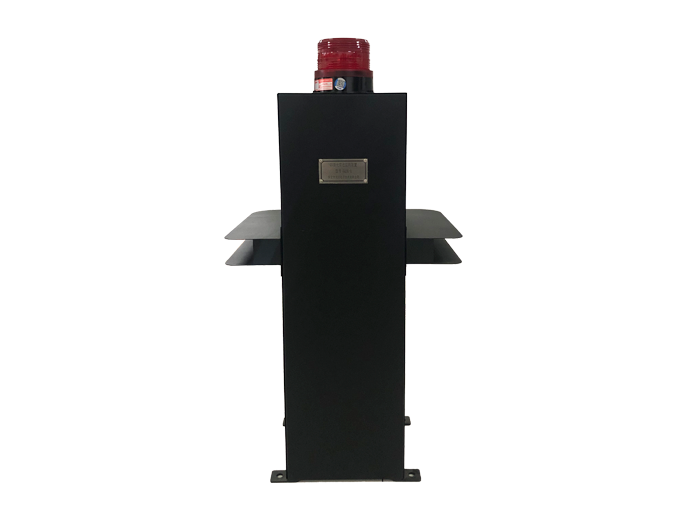

The Wall sentry is equipped with a built-in LiDAR, alarm light and siren, data transmission module, and is assisted by an external rapid dome camera. It can realize perimeter alarm, linkage, target identification, and video recording within a 180-degree radius and a 60-meter sector-shaped defense area. It supports RJ45 Ethernet access and provides SDK for secondary development. In addition, its industrial-grade protective design and long-term reliability test can be used in railway, highway, power, port and other occasions that require high reliability and performance.
Product Model
GQJK-1
Dimensions (L x W x H)
410*320*680mm
Weight
<10kg
Laser class
1,eye-safe (IEC 60825-1)
Laser source
905nm
Monitoring Range
A semicircular area with a radius of 60 meters centered on the device, where warning zones can be set freely within this area
Scanning Radius
A fan-shaped area with a radius of 60 meters for laser scanning
Scanning Angle
The central angle of the fan-shaped laser scanning surface is 180°
Communication Method
Wired Ethernet
Linkage Type
Comes with alarm light and siren, supports external IPC camera
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.

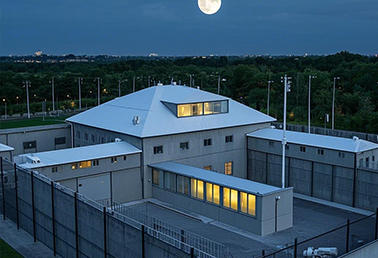

The perimeter of the manor is enclosed

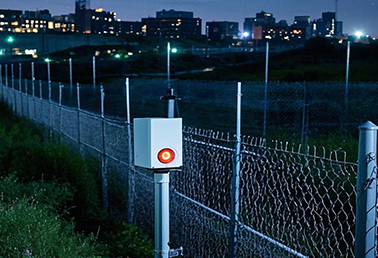

Forbidden areas
Prison perimeter warning
