The GPBF series smart IoT gateway can enable access to machine room environmental monitoring, power monitoring, security monitoring, and more.
The GPBF series smart IoT gateway is a new generation of remote multi-functional smart IoT gateway specifically designed for the network monitoring needs of data centers, core equipment rooms, aggregation equipment rooms, base stations, and others. With extremely high integration, it can achieve access to environmental monitoring (temperature, humidity, smoke, infrared, water immersion, etc.), power monitoring (distribution switch power supply, UPS, air conditioning, battery, array cabinet, etc.), security monitoring (fire protection, access control, video, etc.).The product is characterized by rich interfaces, powerful functions, flexible expansion, high integration, flexible deployment, and convenient maintenance. Its good usability and cost-effectiveness have made it the most widely used host type product.
Product Model

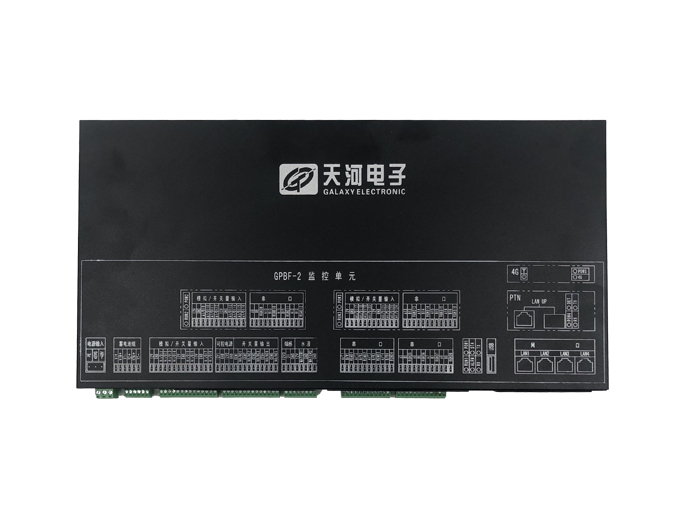

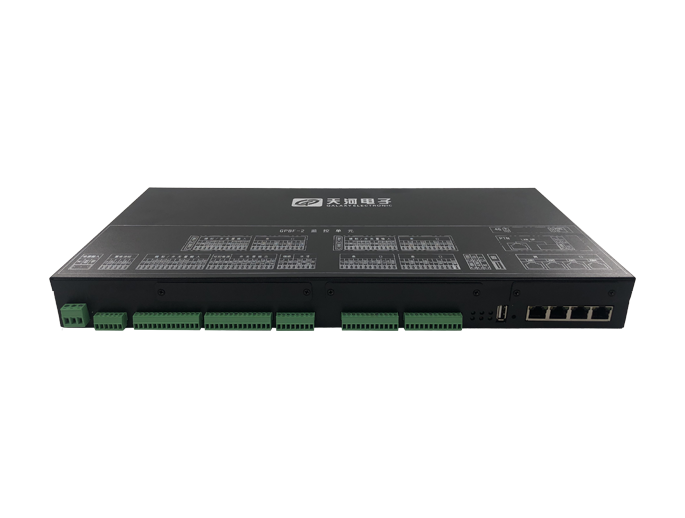

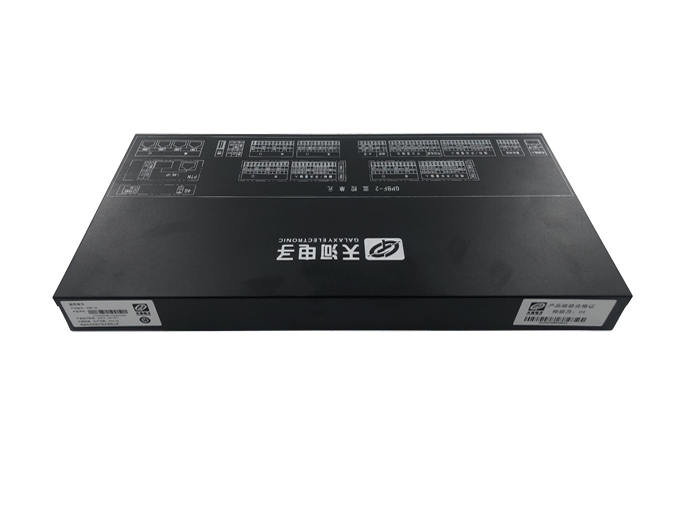

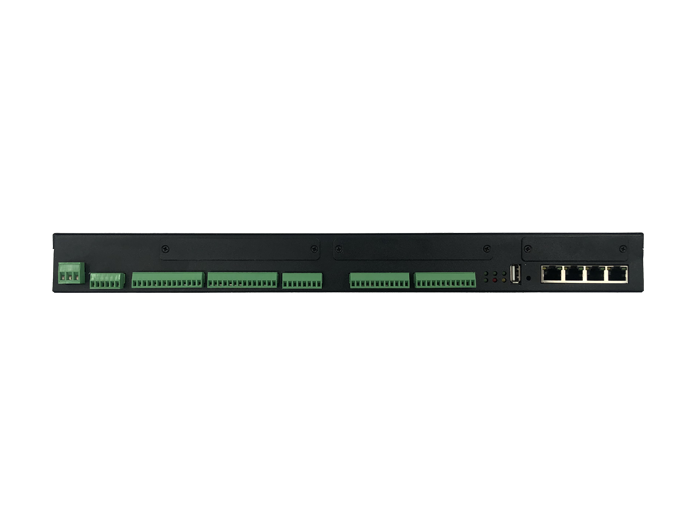

GPBF-2
Analog/Switch Quantity
8 channels, AI: Supports 420mA or 05V selectable; DI: Supports 12V switch signal input
Control Quantity
5 channels, relay normally open and normally closed configurable
Intelligent Serial Port
8 channels, 4 RS232/RS485 configurable serial ports, 4 dedicated RS485 interfaces
Battery
4 channels, total battery voltage and half-group voltage DC0~60V
Smoke Detection
1 channel, 12V controllable output
Water Immersion
2 channels, impedance change type
Controllable Power Supply
2 channels, with hard reset function, output power of each channel ≥7.2W
Ethernet
4 channels, IEEE 802.3 10/100 BASE-T standard
USB Interface
1 channel, USB2.0 standard
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.

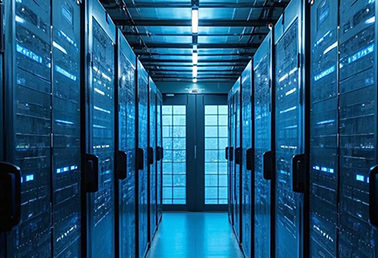

Data center of the communication industrial park

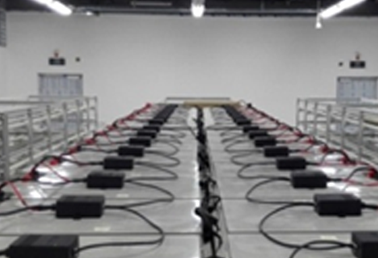

The core computer room of the data center

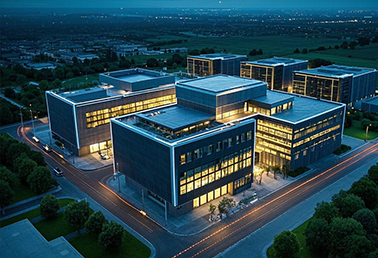

Cloud computing data centers
