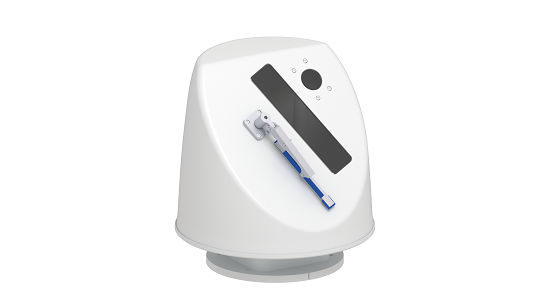

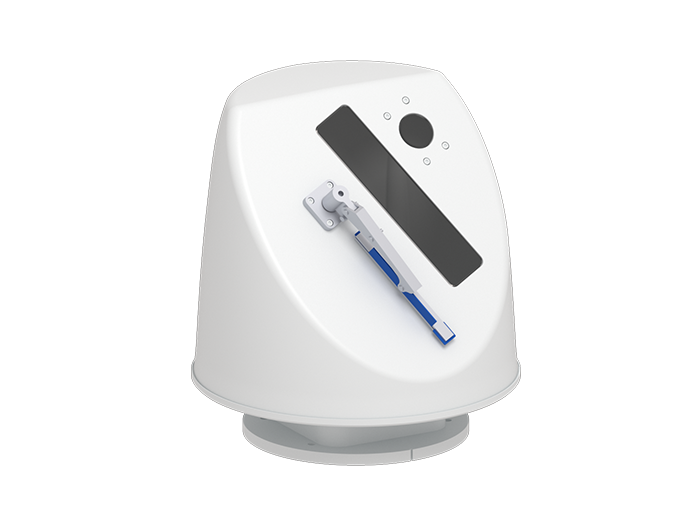

The TH-94100 lidar is designed for grain volume measurement in dusty and dirty environments.,It is a 3D scanning type with a maximum measurement distanceof 100m@10%,radar field of view>90°, video image format 1920x1080@20fps,0.1°@Average Accuracy,explosion-proof identification ExtblllCT80*CDb.
The TH-94 series radar and vision integrated machine is de-signed for bulk material volume measurement in silosin dusty and dirty environments. It is a 3D scanning type with a maxi-mum measurement distance of 100m@10%, a radar field of view>90°, and a video image format of 1920x1080@20fps. The explosion-proof identification is ExtbllICT80℃Db. The whole machine adopts an industrial-grade protection design to meet the strict requirements for safety and reliability in the corre-sponding scenarios of bulk material volume measurement.
Emission frequency144000Hz
Scanning frequency50Hz,25Hz
Scanning range100m@10%
Aperture angleLidar FOV≥90°,Lens FOV≥90°
Light resistance grade80000lx
Angular resolution0.0625°/0.125°,0.1°@Average Accuracy
Product Model

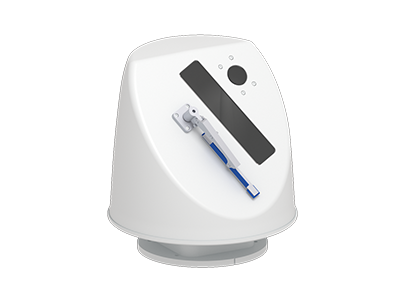

TH-94100
Dimensions
Φ274mm×292mm
Weight
7.7±0.5Kg
Laser class
1,eye-safe (IEC 60825-1)
Laser source
905nm
Emission frequency
144KHz
Scanning range
100m@10%
Scanning frequency
25/50Hz
Aperture angle
Lidar FOV≥90°、Lens FOV≥90°;0~360° horizontal scan、0.1~10°/s horizontal speed
Angular resolution
0.0625/0.125°,0.1°@Average Accuracy
Galaxy Electronic provides 2D LiDAR sensors, 3D LiDAR scanners and LiDAR‑based measurement & scanning solutions.
ITS Sector: Dynamic vehicle dimension detection, vehicle axle identification, road traffic flow analysis, vehicle over-height detection, vehicle separation, etc.
Industrial Sector: Area safety protection, obstacle avoidance for machinery, stockpile volume scanning, conveyor belt flow monitoring, silo level monitoring, truck load volume scanning, overhead crane-mounted scanning, vehicle attitude scanning, etc.
They are widely used in smart road systems, mining, ports, railways, the steel industry, grain storage, bulk material yards, power plants, factories, museums, and more.
We provide network communication protocols, SDKs, relevant technical documentation, and free remote technical support.

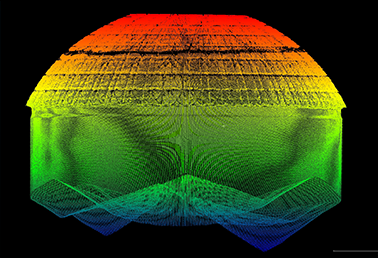

Bulk material volume measurement in the silo

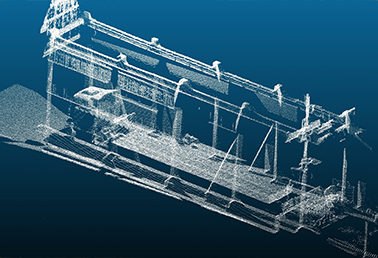

Cargo Identification and Loading Detection

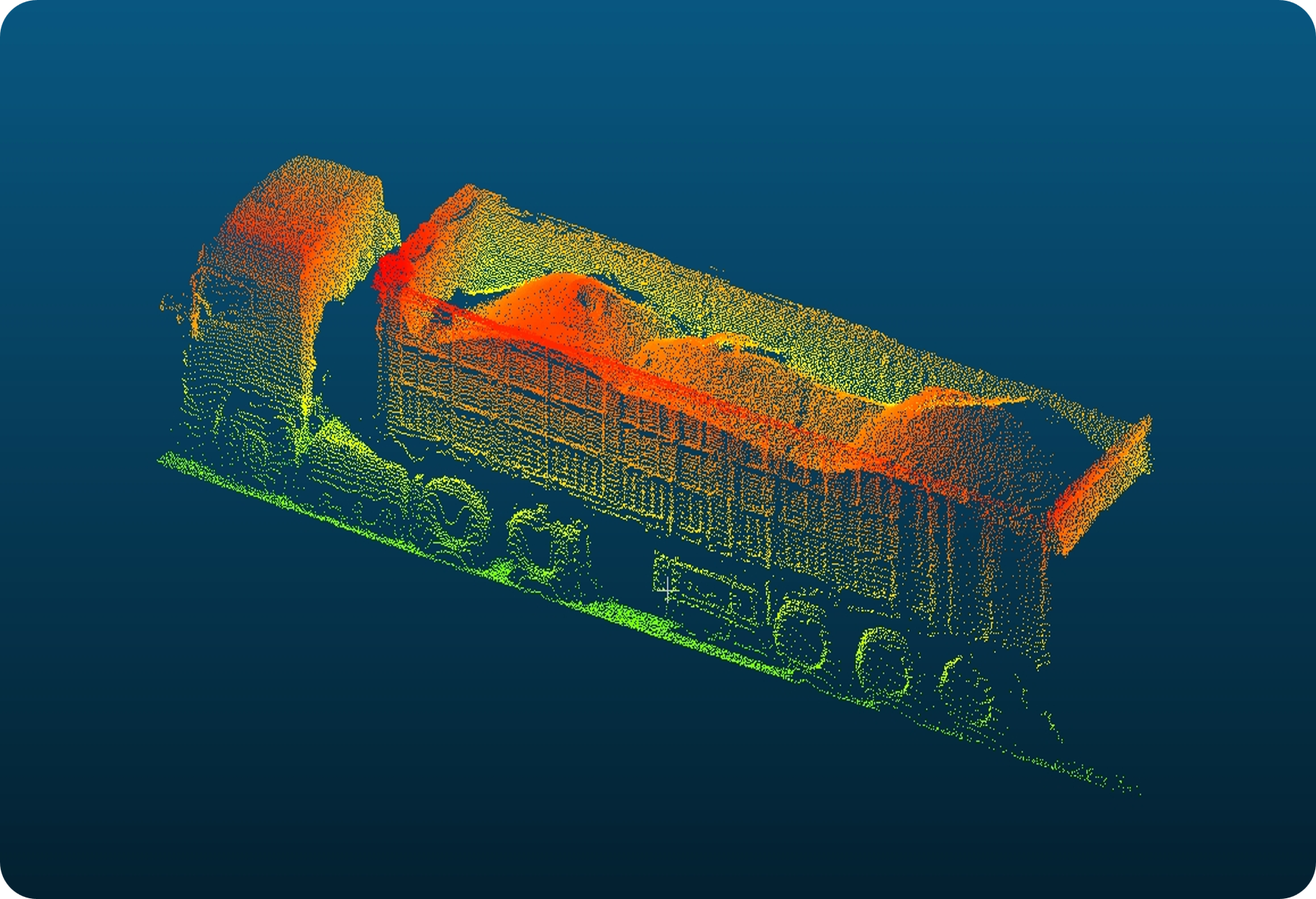

Truck Cargo Identification and Loading Monitoring
