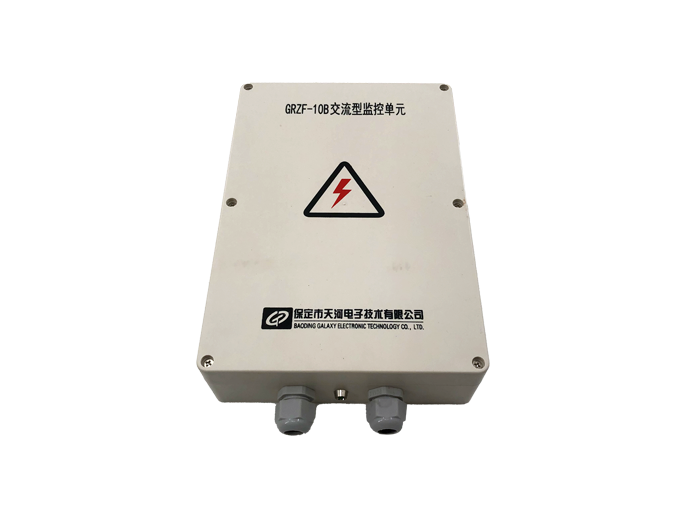

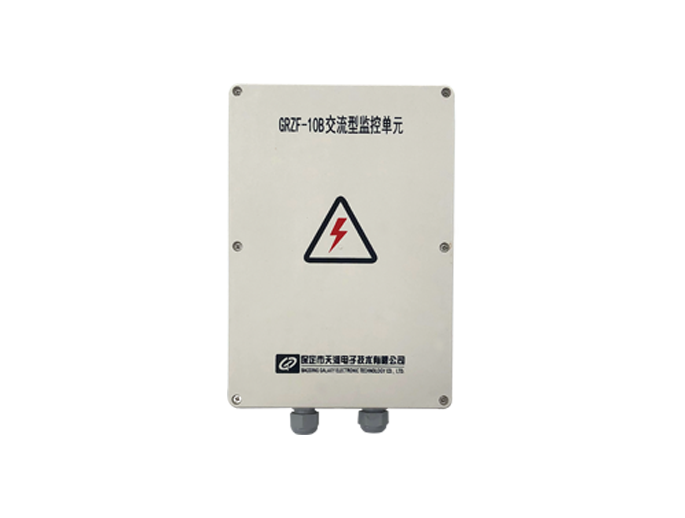

The GRZF-10B micro-station monitoring unit is specifically designed for small sites, outdoor remote stations, and other sites with scattered locations, harsh environments, and simple functions. It can meet the access requirements of various types of sensors and power equipment at the site.
The GRZF-10B micro-station monitoring unit is specifically designed for small sites, outdoor remote stations, and other sites with scattered locations, harsh environments, and simple functions. This product integrates data collection, control, management, and transmission, and can meet the access requirements of various types of sensors and power equipment at the site.The product is characterized by rich interfaces, powerful functions, strong protective capabilities, flexible expansion, high integration, flexible deployment, and convenient maintenance. Its good usability and cost-effectiveness have made it the most widely used type of host product.
Product Model
GRZF-10B
Analog/Switch Quantity
2 Channels, AI: Supports 420mA or 05V selectable; DI: Supports 12V switch signal input
Power Supply and Monitoring Interface
1 Channel, shared with the power interface
Intelligent Serial Port
2 Channels, 1 Channel RS485/R232 universal interface and 1 Channel standard RS485 interface
Ethernet
1 Channel, 10/100M adaptive, supports network registration
USB Interface
1 Channel, USB2.0 standard, OTG or host mode
Communication Function
Supports 2G/3G/4G wireless communication
Positioning Function
Supports GPS or Beidou positioning service
Power Supply and Monitoring Shared Port
AC Type: 220V AC/240V DC (165 V～288 V), DC Type: DC-48V (－60V～－40V), with reverse connection protection
Rated Power
Total input power is less than 5W (excluding external sensors)
